Product Summary

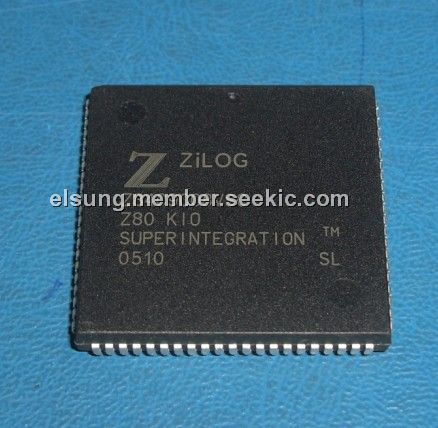

The Z84C9008VSC is a multi-channel, multipurpose I/O device. The device is designed to provide the end-user with a cost-effective and powerful solution to meet peripheral needs. The Z84C9008VSC combines the features of one Z84C30 CTC, one Z84C20 PIO, a Z84C4x SIO, a 8-bit, bit-programmable I/O port, and a crystal-oscillator into a single package. Using fifteen internal registers for data and programming information, the Z84C9008VSC can easily be configured to any given system environment. Although the optimum performance is obtained with a Z84C9008VSC CPU, the KIO can just as easily be used with any other CPU.
Parametrics
Z84C9008VSC absolute maximum ratings: (1)Voltage on VCC with respect to VSS: –0.3V to +7.0V; (2)Voltages on all inputs with respect to VSS: –0.3V to VCC +0.3V; (3)Storage Temperature: –65 to +150℃.
Features
Z84C9008VSC features: ( 1)frequency: 8MHz; (2)84-pin PLCC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z84C9008VSC |
ZiLOG |
I/O Controller Interface IC 8MHz Z80 KIO |
Data Sheet |
Negotiable |
|
||||
|
Z84C9008VSC00TR |
|
IC Z80 MPU KIO 84PLCC |
Data Sheet |
Negotiable |
|
||||
