Product Summary

The TAJD106M050R tantalum capacitor offers high capacitance vs. voltage ratio based on stable MnO2 electrode capacitors. The TAJD106M050R complies with RoHS requirements and it is an environmentally friendly component ready for lead-free assembly systems. The TAJD106M050R is suitable for wide range of consumer electronic applications such as the latest portable handheld electronics, cellular phones, PDAs or other digital equipment and cameras.

Parametrics

TAJD106M050R absolute maximum ratings: (1)Capacitance Range: 1.0μF to 68μF; (2)Capacitance Tolerance: ±10%; ±20%; (3)Leakage Current DCL: 0.01CV or 0.5μA whichever is the greater; (4)Rated Voltage (VR) ≤ +85℃: 2 to 16; (5)Category Voltage (VC) ≤ +125℃: 1.3 to 10; (6)Surge Voltage (VS) ≤ +85℃: 2.7 to 20; (7)Surge Voltage (VS) ≤ +125℃: 1.7 to 12; (8)Temperature Range: -55℃ to +125℃.

Features

TAJD106M050R features: (1)Building on the miniature substrate design concept of the TACmicrochip product; (2)new TAK construction developed to enable higher CV offerings (in excess of 100μF at 6V) in a low profile format; (3)Profile height for the 100μF at 6.3V; (4)product will be 1.0mm and the 150μF-220μF will be 1.2mm max; (5)Configured as a two-terminal device; (6)The substrate top plate allows for efficient dissipation of heat thus improving ripple current handling capabilities.

Diagrams

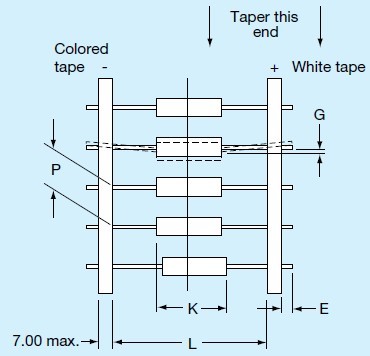

TAJD106M050R TAPE SPECIFICATION

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TAJD106M050RNJ
TAJD106M050RNJ
AVX
Tantalum Capacitors - Solid SMD 50volts 10uF 20%
Data Sheet
0-500: $1.08
500-1000: $1.05
1000-2000: $0.99
2000-5000: $0.93
