Product Summary

The STS4DNF30L is a kind of Power MOSFET, which is the second generation of STMicroelectronics unique Single Feature Size strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. The applications of the STS4DNF30L include: DC motor drive, power managment in cellular phones and so on.

Parametrics

STS4DNF30L maximum ratings: (1)Drain-source Voltage (VGS = 0): 30 V; (2)Drain-gate Voltage (RGS = 20 kW): 30 V; (3)Gate- source Voltage: ± 16 V; (4)Drain Current (continuous) at TC = 25℃: 4 A; (5)Drain Current (continuous) at TC = 100℃: 2.5 A; (6)Drain Current (pulsed): 16 A; (7)Total Dissipation at TC = 25℃ Dual Operation: 2 W.

Features

STS4DNF30L features: (1)TYPICAL RDS(on) = 0.039 Ω; (2)STANDARD OUTLINE FOR EASY AUTOMATED SURFACE MOUNT ASSEMBLY; (3)LOW THRESHOLD DRIVE.

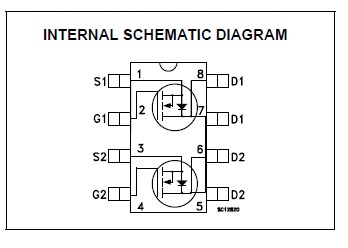

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STS4DNF30L
STS4DNF30L
STMicroelectronics
MOSFET N-Ch 30 Volt 3.5 A
Data Sheet
0-1: $0.60
1-10: $0.46
10-100: $0.40
100-250: $0.35
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STS4DNF30L
STS4DNF30L
STMicroelectronics
MOSFET N-Ch 30 Volt 3.5 A
Data Sheet
0-1: $0.60
1-10: $0.46
10-100: $0.40
100-250: $0.35
