Product Summary

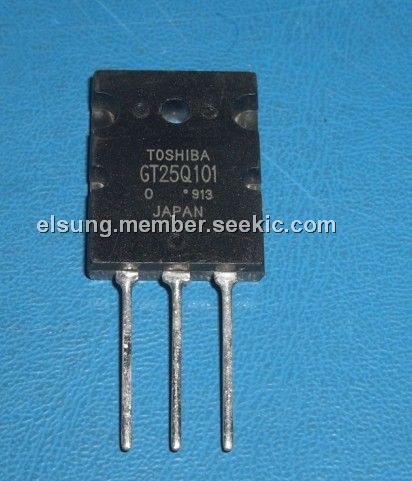

The GT25Q101 is a silicon N-channel IGBT. The device is suitable for high power switching applications and motor control applications.
Parametrics
GT25Q101 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, DC, IC: 25A; 1ms, ICP: 50A; (4)collector power dissipation (Tc=25℃), PC: 200W; (5)junction temperature, Tj: 150℃; (6)storage temperature range, Tstg: -55 to 150℃.
Features
GT25Q101 features: (1)high input impedance; (2)high speed: tf=0.5μ max; (3)low saturation voltage: VCE(sat)=4.0V max; (4)enhancement mode.

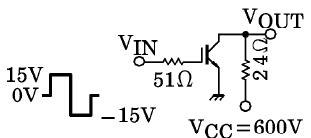

Diagrams
 |
