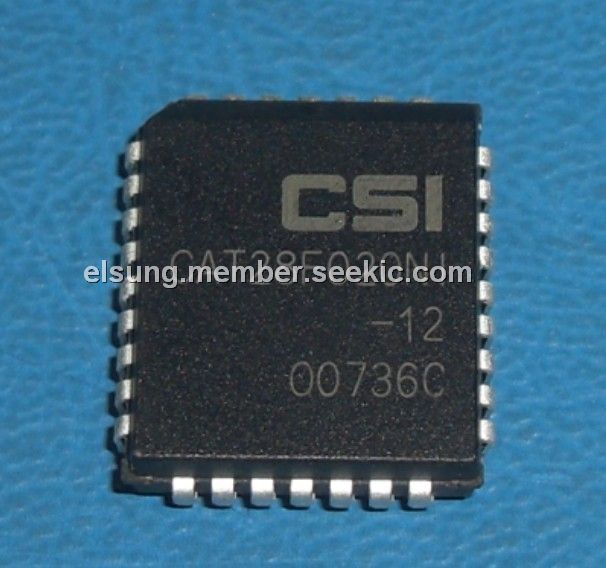

CAT28F020NI-12

2 Megabit CMOS Flash Memory, PLCC, –2.0V to +14.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.50

PartNumber:: CAT28F020NI-12

Brand:: Catalyst Semiconductor inc - CSI | Pack: PLCC | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. doris's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:CAT28F020NI-12
US $1.80 - 2.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

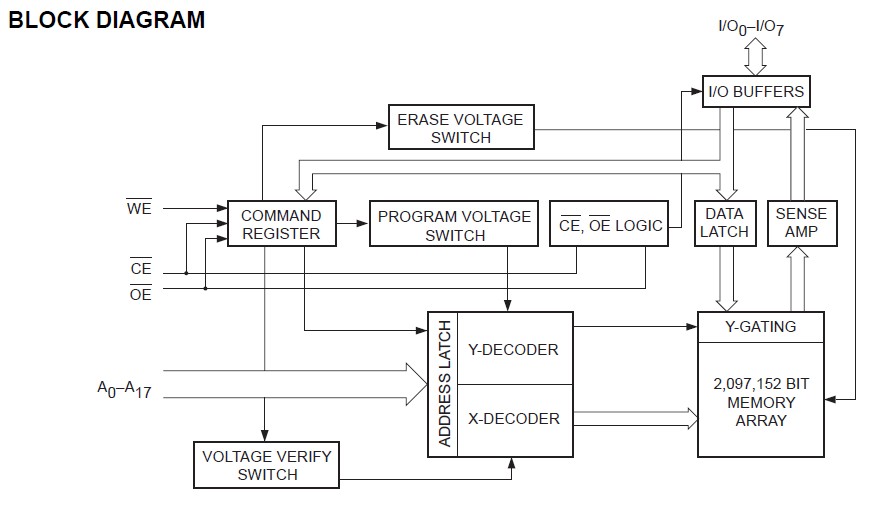

The CAT28F020NI-12 is manufactured using Catalyst advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles and has a data retention of 10 years. The CAT28F020NI-12 is available in JEDEC approved 32-pin plastic DIP, 32-pin PLCC or 32-pin TSOP packages. The CAT28F020NI-12 is a high speed 256K x 8-bit electrically erasable and reprogrammable Flash memory ideally suited for applications requiring in-system or after-sale code updates. Electrical erasure of the full memory contents is achieved typically within 0.5 second.

Parametrics

CAT28F020NI-12 absolute maximum ratings: (1)Temperature Under Bias: –55℃ to +95℃; (2)Storage Temperature: –65℃ to +150℃; (3)Voltage on Any Pin with; (4)Respect to Ground(1): –2.0V to +VCC + 2.0V; (5)Voltage on Pin A9 with Respect to Ground(1): –2.0V to +13.5V; (6)VPP with Respect to Ground during Program/Erase(1): –2.0V to +14.0V; (7)VCC with Respect to Ground(1): –2.0V to +7.0V; (8)Package Power Dissipation Capability (TA = 25℃): 1.0 W; (9)Lead Soldering Temperature (10 secs): 300℃; (10)Output Short Circuit Current(2): 100 mA.

Features

CAT28F020NI-12 features: (1)Fast Read Access Time: 70/90/120 ns; (2)Low Power CMOS Dissipation; (3)High Speed Programming; (4)0.5 Seconds Typical Chip-Erase; (5)12.0V ± 5% Programming and Erase Voltage; (6)Commercial, Industrial and Automotive Temperature Ranges; (7)Stop Timer for Program/Erase; (8)On-Chip Address and Data Latches; (9)JEDEC Standard Pinouts; (10)100,000 Program/Erase Cycles; (11)10 Year Data Retention; (12)Electronic Signature.
