Product Summary

The UHE1V221MPD is a aluminum electrolytic capacitor with low impedance and high reliability.

Parametrics

UHE1V221MPD absolute maximum ratings: (1)Category Temperature Range: –40 to +105℃; (2)Rated Voltage Range: 6.3 to 100V; (3)Rated Capacitance Range: 0.47 to 18000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃; (5)Leakage Current: not more than 0.01CV or 3 (μA); (6)Endurance, Capacitance change: Within ± 25% of the initial capacitance value; tan δ: 200% or less than the initial specified value; Leakage current: Less than or equal to the initial specified value.

Features

UHE1V221MPD features: (1)Low impedance and high reliability withstanding 4000 hours to 10000 hours.; (2)Compliant to the RoHS directive (2002/95/EC).

Diagrams

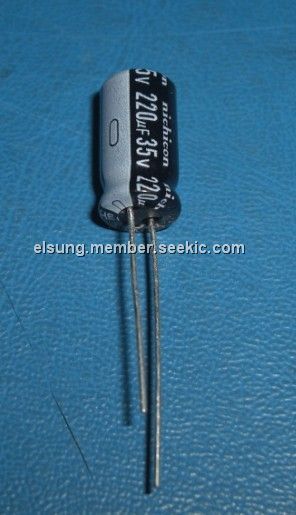

UHE1V221MPD diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UHE1V221MPD
UHE1V221MPD

Nichicon

Aluminum Electrolytic Capacitors - Leaded 35volts 220uF 8x15 20% 3.5LS

Data Sheet

0-1: $0.35
1-10: $0.25
10-100: $0.14
100-500: $0.12
UHE1V221MPD6
UHE1V221MPD6

Nichicon

Aluminum Electrolytic Capacitors - Leaded 35volts 220uF 0.2L/S

Data Sheet

0-1: $0.30
1-10: $0.21
10-100: $0.14
100-500: $0.10
UHE1V221MPD6TD
UHE1V221MPD6TD

Nichicon

Aluminum Electrolytic Capacitors - Leaded 220UF 35V

Data Sheet

0-1000: $0.09
