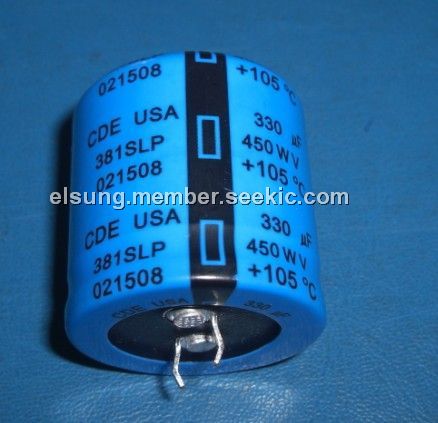

Product Summary

The SLP331M450H5P3 is a Snap-In Aluminum Electrolytic. It is the best value package snap-in series for 105 oC, 3000 h operation. The SLP331M450H5P3 is the most cost-effective choice for DC filtering and power supply applications where high temperature, long life and high ripple capability are needed.

Parametrics

SLP331M450H5P3 absolute maximum ratings: (1)Temperature Range: –40 to +105℃ ≤ 100 Vdc;–25 to +105℃ ≥ 160 Vdc; (2)Rated Voltage Range: 10 Vdc to 450 Vdc; (3)Capacitance Range: 47 μF to 56,000 μF; (4)Capacitance Tolerance: ±20%; (5)Leakage Current: ≤ 3 CV μA at 5 minutes.

Features

SLP331M450H5P3 features: (1)3000 h ripple load life at rated voltage; (2)105℃ rated; (3)Small case size with high capacitance; (4)Best for switching power supplies; (5)22 mm to 35 mm diameter, 10 mm lead spacing; (6)Best value snap-in type; (7)High ripple current.

Diagrams

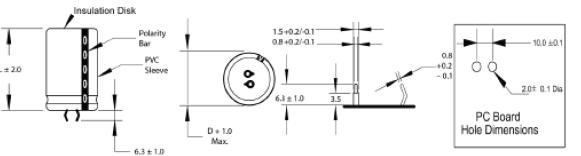

SLP331M450H5P3 Outline Drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SLP331M450H5P3
SLP331M450H5P3
Cornell Dubilier
Aluminum Electrolytic Capacitors - Snap In 330uF 450V 20%
Data Sheet
0-1: $4.69
1-10: $3.62
10-50: $2.90
50-100: $2.76
