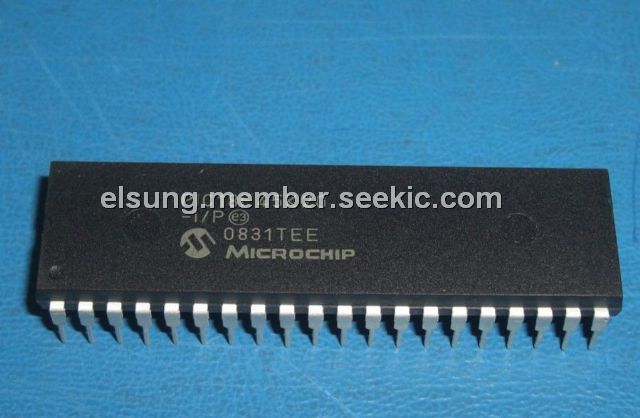

PIC18F45K20-I-P

44-Pin, Flash Microcontroller, nanoWatt XLP Technology, QFP, VDD + 0.3V, 20mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~12.00

PartNumber:: PIC18F45K20-I-P

Brand:: Microchip Technology - Microchip | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. doris's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:PIC18F45K20-I-P
US $8.00 - 12.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

This PIC18F45K20-I-P offers the advantages of the microcontroller – namely, high computational performance at an economical price – with the addition of high-endurance, Flash program memory. On top of these features, the IC18F45K20-I-P0 introduces design enhancements that makes the microcontroller a logical choice for many highperformance, power sensitive applications. The PIC18F45K20-I-P offers ten different oscillator options, allowing users a wide range of choices in developing application hardware.

Parametrics

PIC18F45K20-I-P (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +4.5V; (5)Voltage on MCLR with respect to VSS: 0V to +11.0V; (6)Total power dissipation: 1.0W; (7)Maximum current out of VSS pin (-40℃ to +85℃): 300 mA; (8)Maximum current out of VSS pin (+85℃ to +125℃): 125 mA; (9)Maximum current into VDD pin (-40℃ to +85℃): 200 mA; (10)Maximum current into VDD pin (+85℃ to +125℃): 85 mA; (11)Input clamp current, IIK (VI < 0 or VI > VDD): 20 mA; (12)Output clamp current, IOK (VO < 0 or VO > VDD): 20 mA; (13)Maximum output current sunk by any I/O pin: 25 mA; (14)Maximum output current sourced by any I/O pin: 25 mA; (15)Maximum current sunk by all ports (-40℃ to +85℃): 200 mA; (16)Maximum current sunk by all ports (+85℃ to +125℃): 110 mA; (17)Maximum current sourced by all ports (-40℃ to +85℃): 185 mA; (18)Maximum current sourced by all ports (+85℃ to +125℃): 70 mA.

Features

PIC18F45K20-I-P features: (1)High-Performance RISC CPU; (2)Flexible Oscillator Structure; (3)Operating Voltage Range: 1.8V to 3.6V; (4)Self-Programmable under Software Control; (5)Single-Supply 3V In-Circuit Serial Programming(ICSP via Two Pins; (6)In-Circuit Debug (ICD) via Two Pins; (7)Extreme Low-Power Management with nanoWatt XLP; (8)Peripheral Highlights; (9)Capture/Compare/PWM (CCP) module; (10)Enhanced CCP (ECCP) module.
