Product Summary

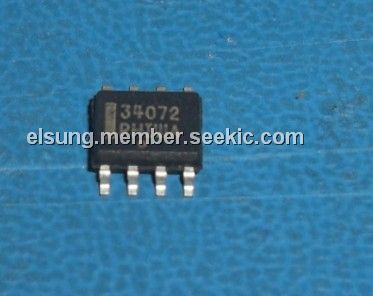

The MC34072DR2G is a Operational Amplifier. It offers 4.5 MHz of gain bandwidth product, 13 V/μs slew rate and fast settling time without the use of JFET device technology. Although it can be operated from split supplies, the MC34072DR2G is particularly suited for single supply operation, since the common mode input voltage range includes ground potential (VEE). The MC34072DR2G is available in standard or prime performance (A Suffix) grades and arespecified over the commercial, industrial/vehicular or military temperature ranges.
Parametrics
MC34072DR2G absolute maximum ratings: (1)Supply Voltage (from VEE to VCC):+44 V; (2)Output Short Circuit Duration :Indefinite Sec; (3)Operating Junction Temperature:+150℃; (4)Storage Temperature Range:-60℃ to +150℃.
Features
MC34072DR2G features: (1)Wide Bandwidth: 4.5 MHz; (2)High Slew Rate: 13 V/μs; (3)Fast Settling Time: 1.1 μs to 0.1%; (4)Wide Single Supply Operation: 3.0 V to 44 V; (5)Wide Input Common Mode Voltage Range: Includes Ground (VEE); (6)Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); (7)Large Output Voltage Swing: -14.7 V to +14 V (with ±15 V Supplies); (8)Large Capacitance Drive Capability: 0 pF to 10,000 pF; (9)Low Total Harmonic Distortion: 0.02%; (10)Excellent Phase Margin: 60°; (11)Excellent Gain Margin: 12 dB; (12)Output Short Circuit Protection; (13)ESD Diodes/Clamps Provide Input Protection for Dual and Quad; (14)Pb?Free Packages are Available.

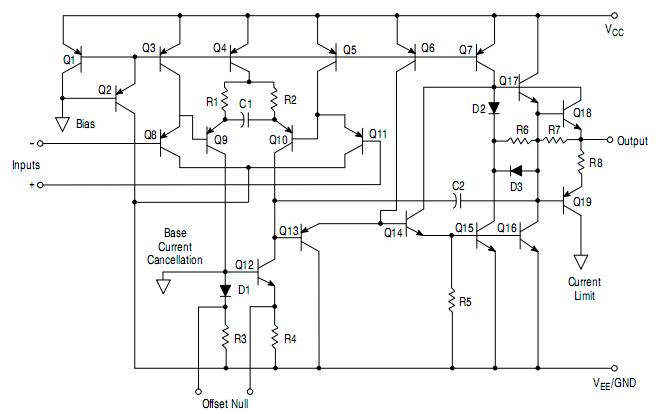

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MC34072DR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-44V Dual 5mV VIO Commercial Temp |
Data Sheet |
|
|
|||||||||||||
