Product Summary

The MBR20200CT using Schottky Barrier technology with a platinum barrier metal. This state–of–the–art device is designed for use in high frequency switching power supplies and converters with up to 48 volt outputs. They block up to 200 volts and offer improved Schottky performance at frequencies from 250 kHz to 5.0 MHz.

Parametrics

MBR20200CT maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 200 Volts; (2)Peak Repetitive Reverse Surge Current (2.0 ms, 1.0 kHz) IRRM: 1.0 Amp; (3)Operating Junction Temperature TJ: –65 to +150 ℃; (4)Storage Temperature Tstg: –65 to +175 ℃; (5)Voltage Rate of Change (Rated VR) dv/dt: 10,000 V/ms; (6)Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz): IFSM 150 Amps; (7)Peak Repetitive Forward Current, Per Leg(Rated VR, Square Wave, 20 kHz) TC = 90℃ IFRM: 20 Amps.

Features

MBR20200CT features: (1)200 Volt Blocking Voltage; (2)Low Forward Voltage Drop; (3)Guardring for Stress Protection and High dv/dt Capability; (4)(10,000 V/ms); (5)Dual Diode Construction Terminals 1 and 3 Must be; (6)Connected for Parallel Operation at Full Rating.

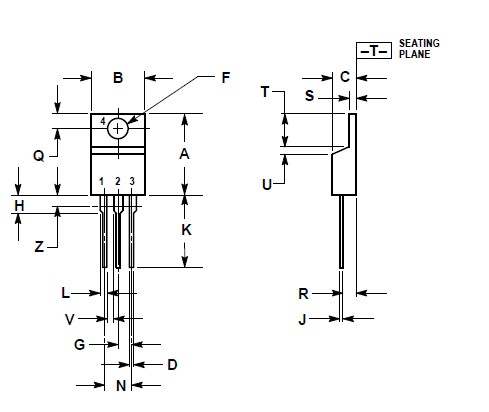

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBR20200CT
MBR20200CT
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 20 Amp 200 Volt Dual
Data Sheet
0-2000: $0.54
2000-4000: $0.47
4000-6000: $0.43
MBR20200CTG
MBR20200CTG
ON Semiconductor
Schottky (Diodes & Rectifiers) 20A 200V
Data Sheet
0-1: $0.97
1-25: $0.77
25-100: $0.62
100-500: $0.54
MBR20200CTTU
MBR20200CTTU
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) Dual High Voltage
Data Sheet
0-1: $0.72
1-25: $0.63
25-100: $0.58
100-250: $0.50
