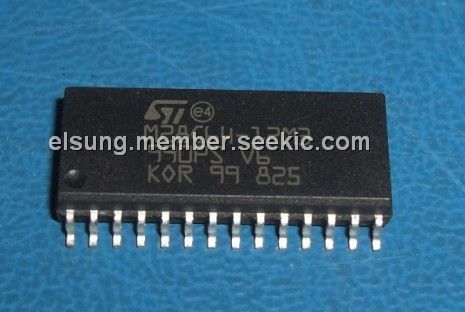

Product Summary

The M28C64-123 is a 64 Kbit 8K x 8 Parallel EEPROM With Software Data Protection. It consists of 8192x8 bits of low power, parallel EEPROM, fabricated with STMicroelectronics’ proprietary single polysilicon CMOS technology. The M28C64-123 offers fast access time, with low power dissipation, and require a single voltage supply (5V or 3V, depending on the option chosen). The device has been designed to offer a flexible microcontroller interface, featuring both hardware and software handshaking, with Ready/Busy, Data Polling and Toggle Bit. The M28C64-123 supports a 64 byte Page Write operation. Software Data Protection (SDP) is also supported, using the standard JEDEC algorithm.

Parametrics

M28C64-123 absolute maximum ratings: (1)Ambient Operating Temperature:-40℃ to 125℃; (2)Storage Temperature:-65℃ to 150℃; (3)Supply Voltage:-0.3V to VCC+1V; (4)Input or Output Voltage:-0.6V to VCC+0.6V; (5)Input Voltage:-0.3V to 6.5V; (6)Electrostatic Discharge Voltage (Human Body model):4000V.

Features

M28C64-123 features: (1)Fast Access Time:120 ns at VCC=3 V for M28C64-xxW; (2)Single Supply Voltage:2.7 V to 3.6 V for M28C64-xxW; (3)Low Power Consumption; (4)Fast BYTE and PAGE WRITE (up to 64 Bytes):5 ms at VCC=2.7 V for M28C64-xxW; (5)Enhanced Write Detection and Monitoring:Ready/Busy Open Drain Output, Data Polling, Toggle Bit, Page Load Timer Status; (6)JEDEC Approved Bytewide Pin-Out; (7)Software Data Protection; (8)100000 Erase/Write Cycles (minimum); (9)Data Retention (minimum):40 Years for M28C64 and M28C64-xxW.

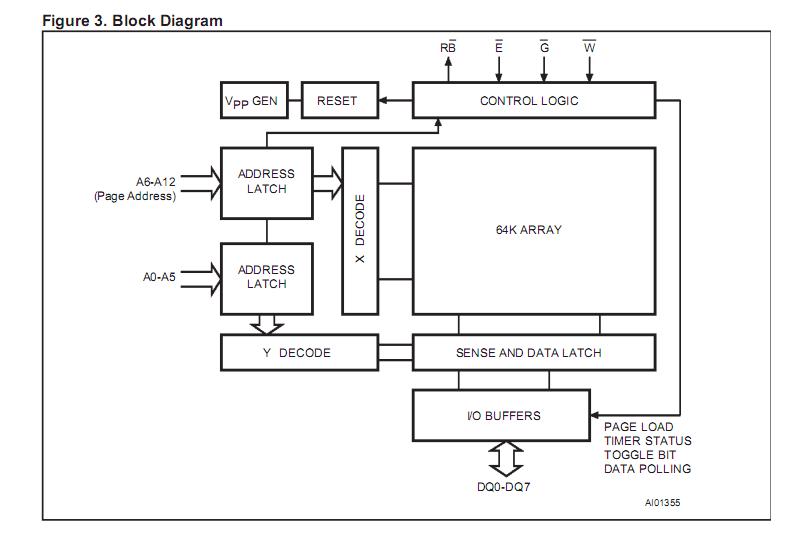

Diagrams
