Product Summary

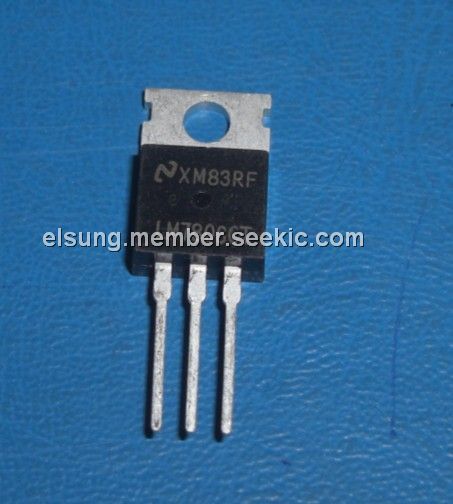

The LM7806CT three terminal positive regulator is available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking of the LM7806CT is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the LM7806CT can be used with external components to obtain adjustable voltages and currents.
Parametrics
LM7806CT absolute maximum ratings: (1)Input Voltage (for VO = 5V to 18V) VI: 35 V; (2)(for VO = 24V) VI: 40 V; (3)Thermal Resistance Junction-Cases (TO-220) RθJC: 5 ℃/W; (4)Thermal Resistance Junction-Air (TO-220) RθJA： 65 ℃/W; (5)Operating Temperature Range TOPR: 0to +125 ℃; (6)Storage Temperature Range TSTG: -65 to +150 ℃.
Features
LM7806CT features: (1)Output Current up to 1A; (2)Output Voltages of 5, 6, 8, 9, 12, 15, 18, 24; (3)Thermal Overload Protection; (4)Short Circuit Protection; (5)Output Transistor Safe Operating Area Protection.

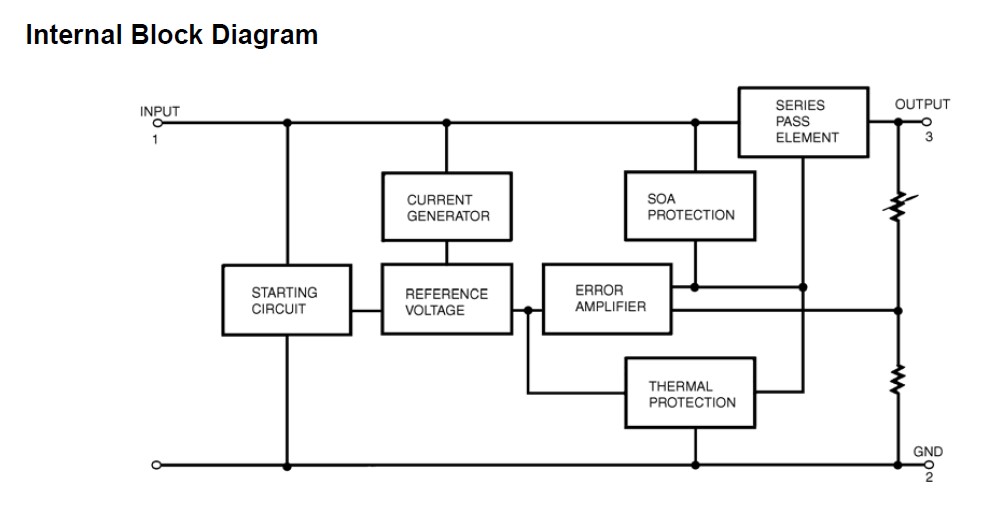

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM7806CT |
Fairchild Semiconductor |
Linear Regulators - Standard REGULATOR 6V 1A 4% |
Data Sheet |
|
|
||||||||||||
