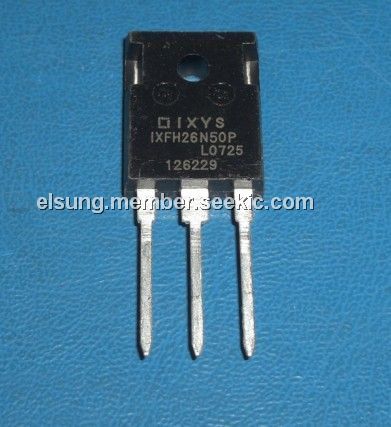

IXFH26N50P

Power MOSFET, TO247, 500 V, 78 A, Fast intrinsic diode, IXYS Corporation, IXFH26N50P

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.20

PartNumber:: IXFH26N50P

Brand:: IXYS Corporation - ixys | Pack: TO | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. doris's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-01

From Other Seller

Part Number:IXFH26N50P
US $0.90 - 1.20
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IXFH26N50P is a Power MOSFET. The applications of the device include Easy to mount, Space savings and High power density.

Parametrics

IXFH26N50P absolute maximum ratings: (1)VDSS: 500 V when TJ = 25℃ to 150℃; (2)VDGR: 500 V when TJ = 25℃ to 150℃; RGS = 1 MΩ; (3)VGSS Continuos: ± 30 V; (4)VGSM Transient: ± 40 V; (5)ID25: 26 A when TC = 25℃; (6)IDM: 78 A when TC = 25℃, pulse width limited by TJM; (7)IAR: 26 A when TC = 25℃; (8)EAR: 40 mJ when TC = 25℃; (9)EAS: 1.0 J when TC = 25℃; (10)dv/dt: 10 V/ns when IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ VDSS, TJ ≤ 150℃, RG = 4 Ω; (11)PD: 400 W when TC = 25℃; (12)TJ: -55 to +150 ℃; (13)TJM: 150 ℃; (14)Tstg: -55 to +150℃; (15)TL: 300 ℃ when 1.6 mm (0.062 in.) from case for 10 s; 260 ℃ when Plastic body.

Features

IXFH26N50P features: (1)International standard packages; (2)Fast intrinsic diode; (3)Unclamped Inductive Switching (UIS) rated; (4)Low package inductance: easy to drive and to protect.
