Product Summary

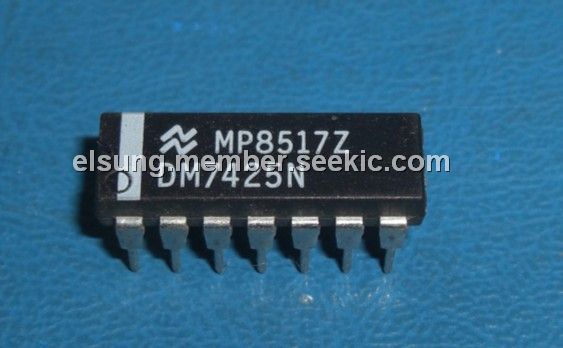

The DM7425N is a dual 4-input NOR gate. The device contains two, 4-input gates taht perform the logic NOR function. The output of each NOR gate is gated by pin 3 and pin 11 by positive true logic.

Parametrics

DM7425N absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.5V; (3)operating free air temeprature range: -55 to 125℃; (4)storage temeprature range: -65 to 150℃.

Features

DM7425N features: (1)Vi, input clamp votlage: -1.5V when VCC=min, II: -12mA max; (2)VOH, high level output voltage: 2.4V min, 3.4V typ; (3)VOL, low level output voltage: 0.2V typ, 0.4V max when VCC=min, IOL=max, IIH=min; (4)II, input current@max input voltage: 1mA max when VCC=max, VI=5.5V; (5)IIH, high level input current: 160μA; (6)IIL, low level input current: -6.4mA; (7)IOS, short circuti output current: -20 to -55mA; (8)ICCH, supply current with outputs high: 18mA when VCC=max; (9)ICCL, supply current with outputs low: 19mA when VCC=max.

Diagrams

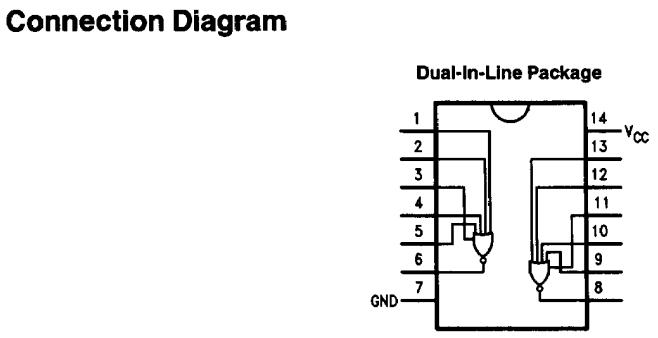

DM7425N connection diagram
