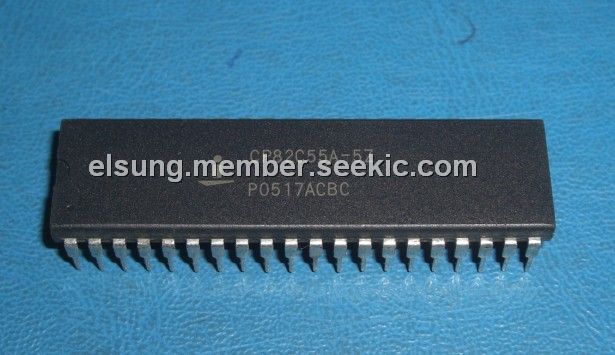

CP82C55A-5Z

high performance CMOS version, DIP, +8.0V, Pb-Free, High Speed, No wait State Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.20

PartNumber:: CP82C55A-5Z

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. doris's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-01

From Other Seller

Part Number:CP82C55A-5Z
US $2.00 - 3.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CP82C55A-5Z is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The CP82C55A-5Z is a general purpose programmable I/O device which may be used with many different microprocessors. The CP82C55A-5Z is 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the CP82C55A-5Z make it compatible with the 80C86, 80C88 and other microprocessors.

Parametrics

CP82C55A-5Z absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage: GND-0.5V to VCC+0.5V; (3)ESD Classification: Class 1; (4)Voltage Range: +4.5V to 5.5V; (5)Operating Temperature Range: 0 to 70℃.

Features

CP82C55A-5Z features: (1)Pb-Free Plus Anneal Available (RoHS Compliant); (2)Pin Compatible with NMOS 8255A; (3)24 Programmable I/O Pins; (4)Fully TTL Compatible; (5)High Speed, No wait State Operation with 5MHz and 8MHz 80C86 and 80C88; (6)Direct Bit Set/Reset Capability; (7)Enhanced Control Word Read Capability; (8)L7 Process; (9)2.5mA Drive Capability on All I/O Ports; (10)Low Standby Power (ICCSB): 10μA.
