Product Summary

The AT45DB161D-TU is a 2.5-volt or 2.7-volt, serial-interface sequential access Flash memory. The AT45DB161D-TU is ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB161D-TU supports RapidS serial interface for applications requiring very high speed operations. RapidS serial interface is SPI compatible for frequencies up to 66 MHz. Its 17,301,504 bits of memory are organized as 4,096 pages of 512 bytes or 528 bytes each. In addition to the main memory, the AT45DB161D-TU also contains two SRAM buffers of 512/528 bytes each. The buffers allow the receiving of data while a page in the main Memory is being reprogrammed, as well as writing a continuous data stream.

Parametrics

AT45DB161D-TU absolute maximum ratings: (1)Temperature under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB161D-TU features: (1)Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2)RapidS Serial Interface: 66 MHz Maximum Clock Frequency: SPI Compatible Modes 0 and 3; (3)User Configurable Page Size: 512 Bytes per Page; 528 Bytes per Page; (4)Page Program Operation: Intelligent Programming Operation; 4,096 Pages (512/528 Bytes/Page) Main Memory; (5)Flexible Erase Options: Page Erase (512 Bytes); Block Erase (4 Kbytes); Sector Erase (128 Kbytes); Chip Erase (16 Mbits); (6)Two SRAM Data Buffers (512/528 Bytes): Allows Receiving of Data while Reprogramming the Flash Array; (7)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (8)Low-power Dissipation; (9)Hardware and Software Data Protection Features: Individual Sector; (10)Sector Lockdown for Secure Code and Data Storage: Individual Sector; (11)Security: 128-byte Security Register: 64-byte User Programmable Space; Unique 64-byte Device Identifier; (12)JEDEC Standard Manufacturer and Device ID Read; (13)100,000 Program/Erase Cycles Per Page Minimum; (14)Data Retention 20 Years; (15)Industrial Temperature Range; (16)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

Diagrams

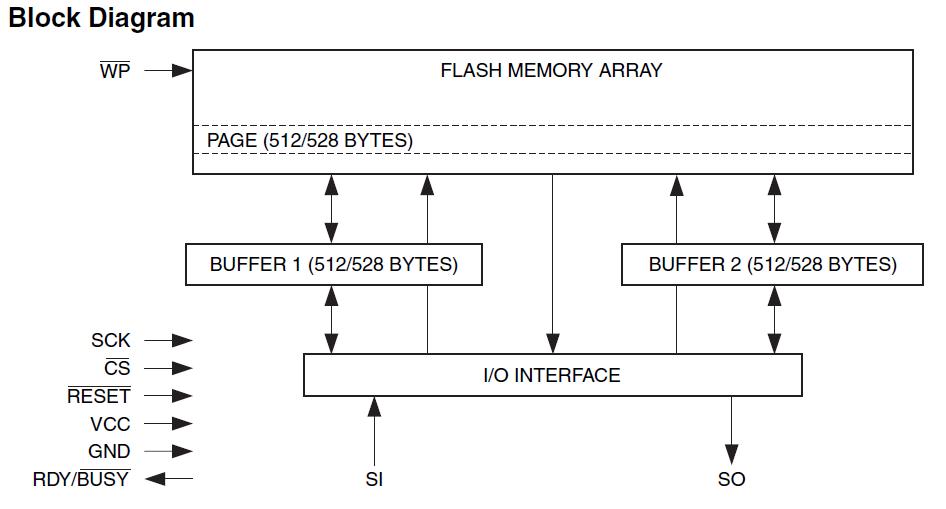

AT45DB161D-TU block diagram
