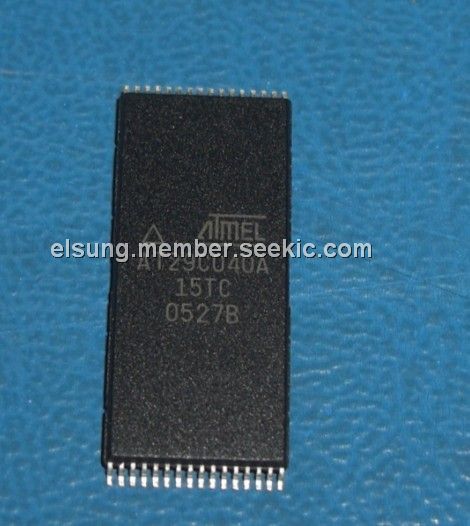

AT29C040A-15TC

5-volt, 256-Byte Sector CMOS, flash memory, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.50~4.20

PartNumber:: AT29C040A-15TC

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. doris's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:AT29C040A-15TC
US $3.50 - 4.20
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C040A-15TC is a 5-volt-only in-system Flash Programmable and Erasable Read Only Memory (PEROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS EEPROM technology, the device offers access times up to 100 ns, and a low 220 mW power dissipation. When the AT29C040A-15TC is deselected, the CMOS standby current is less than 100 mA. The device endurance is such that any sector can typically be written to in excess of 10,000 times. The programming algorithm of the AT29C040A-15TC is compatible with other devices in Atmel 5-volt-only Flash family.

Parametrics

AT29C040A-15TC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C040A-15TC features: (1)Fast Read Access Time - 100 ns; (2)5-Volt-Only Reprogramming; (3)Sector Program Operation; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Two 16 KB Boot Blocks with Lockout; (7)Fast Sector Program Cycle Time - 10 ms; (8)DATA Polling for End of Program Detection; (9)Low Power Dissipation; (10)Typical Endurance > 10,000 Cycles; (11)Single 5V ± 10% Supply; (12)CMOS and TTL Compatible Inputs and Outputs.
