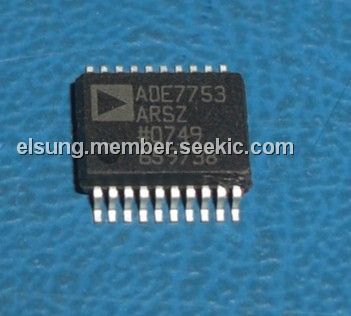

ADE7753ARS

Product Summary

The ADE7753ARS is an accurate active and apparent energy measurements IC with a serial interface and a pulse output. The ADE7753ARS incorporates two second order sigma delta ADCs, a digital integrator (on CH1), reference circuitry, temperature sensor, and all the signal processing required to perform RMS calculation on the voltage and current, active, reactive, and apparent energy measurement. The ADE7753ARS has a positive only accumulation mode which gives the option to accumulate energy only when positive power is detected.The ADE7753ARS is available in 20-lead SSOP package.

Parametrics

ADE7753ARS absolute maximum ratings: (1)AVDD to AGND: –0.3 V to +7 V; (2)DVDD to DGND: –0.3 V to +7 V; (3)DVDD toAVDD: –0.3 V to +0.3 V; (4)Analog Input Voltage to AGND V1P, V1N, V2P and V2N: -6V to +6V; (5)Reference Input Voltage to AGND: –0.3 V to AVDD +; (6)0.3 V; (7)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (8)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (9)Operating Temperature Range Industrial: –40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Junction Temperature: +150℃; (12)20 Pin SSOP, Power Dissipation: 450 mW; (13)θJA Thermal Impedance: 112℃/W; (14)Lead Temperature, Soldering; (15)Vapor Phase (60 sec): +215℃; (16)Infrared (15 sec): +220℃.

Features

ADE7753ARS features: (1)High Accuracy, supports IEC 61036 and IEC61268; (2)On-Chip Digital Integrator enables direct interface with current sensors with di/dt output; (3)The ADE7753 supplies Active, Reactive and Apparent Energy, Sampled Waveform, Current and Voltage RMS; (4)Less than 0.1% error over a dynamic range of 1000 to 1; (5)Positive only energy accumulation mode available; (6)An On-Chip user Programmable threshold for line voltage surge and SAG, and PSU supervisory; (7)Digital Power, Phase & Input Offset Calibration; (8)An On-Chip temperature sensor (±3℃ typical); (9)A SPI compatible Serial Interface; (10)A pulse output with programmable frequency; (11)An Interrupt Request pin (IRQ) and Status register; (12)Proprietary ADCs and DSP provide high accuracy data over large variations in environmental conditions and time; (13)Reference 2.4V±8% (20 ppm/℃ typical) with external overdrive capability; (14)Single 5V Supply, Low power (25mW typical).

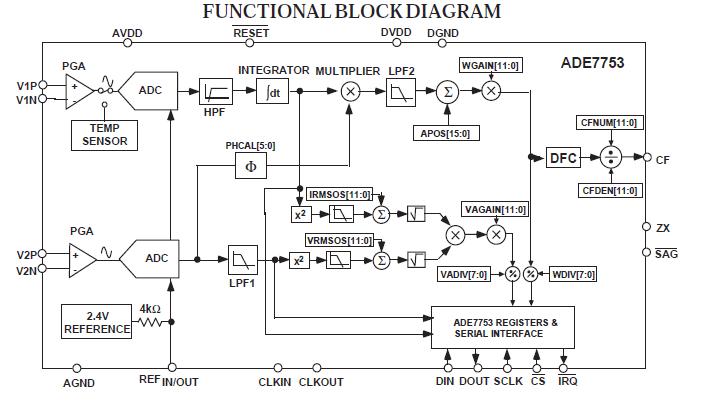

Diagrams
