Product Summary

The AD8603AUJZ is a single micro power rail-to-rail input and output amplifier. Respectively, it features very low offset voltage as well as low input voltage and current noise. The amplifier use a patented trimming technique that achieves superior precision without laser trimming. The parts of the AD8603AUJZ are fully specified to operate from 1.8 V to 5.0 V single supply or from ±0.9 V to ±2.5 V dual supply. The combination of low offsets, low noise, very low input bias currents, and low power consumption make the AD8603AUJZ especially useful in portable and loop-powered instrumentation. The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.

Parametrics

AD8603AUJZ absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±6 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range: All Packages –65℃ to +150℃; (6)Lead Temperature (Soldering, 60 sec): 300℃; (7)Operating Temperature Range: –40℃ to +125℃; (8)Junction Temperature Range :All Packages –65℃ to +150℃.

Features

AD8603AUJZ features: (1)Low offset voltage: 50 μV max; (2)Low input bias current: 1 pA max; (3)Single-supply operation: 1.8 V to 5 V; (4)Low noise: 22 nV/√Hz; (5)Micropower: 50 μA max; (6)Low distortion; (7)No phase reversal; (8)Unity gain stable.

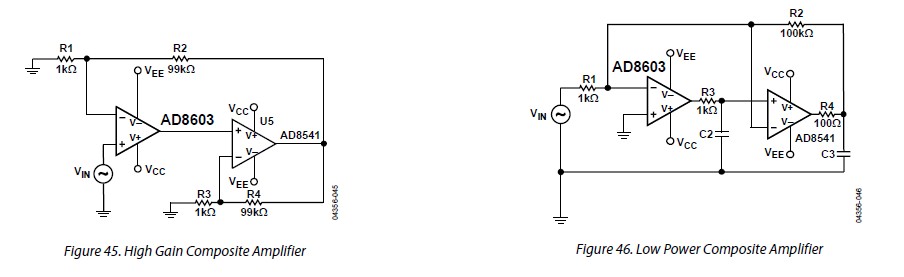

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8603AUJZ-R2
AD8603AUJZ-R2

IC OPAMP GP R-R CMOS TSOT23-5
Data Sheet
0-1: $1.48
1-10: $1.34
10-25: $1.20
25-100: $1.08
AD8603AUJZ-REEL
AD8603AUJZ-REEL

IC OPAMP GP R-R CMOS TSOT23-5
Data Sheet
0-10000: $0.42

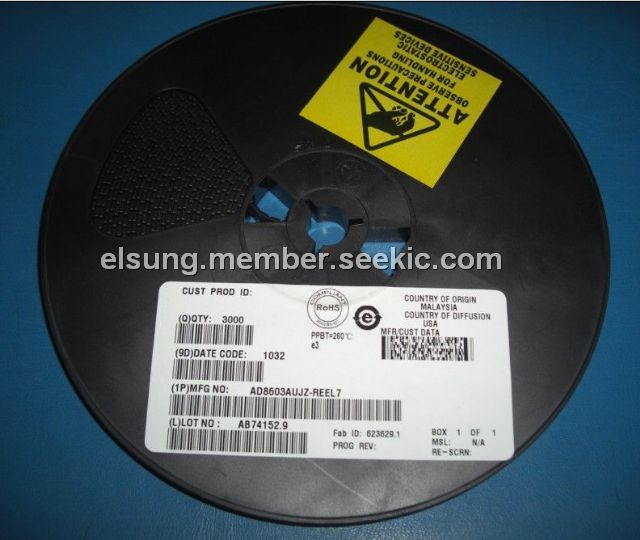

AD8603AUJZ-REEL7
AD8603AUJZ-REEL7

IC OPAMP GP R-R CMOS TSOT23-5
Data Sheet
0-3000: $0.43
3000-6000: $0.42
