Product Summary

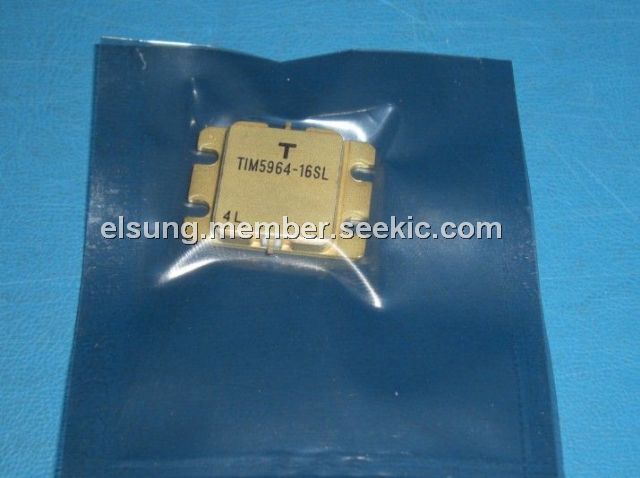

The TIM5964-16SL is a microwave power GaAs FET.
Parametrics
TIM5964-16SL absolute maximum ratings: (1)drain-source voltage: 15 V; (2)gate-source voltage: -5 V; (3)drain current: 14 A; (4)total power dissiaption: 75 W; (5)channel temperature: 175℃; (6)storage temperature: -65 to 175℃.
Features
TIM5964-16SL features: (1)low intermodulation distortion: IM3=-45 dBc at Po=31.5 dBm, single carrier level; (2)high power: P1dB=42.5 dBm at 5.9 GHz to 6.4 GHz; (3)high gain: G1dB=8.0 dB at 5.9 GHz to 6.4 GHz; (4)broad band internally matched; (5)hermetically sealed package.

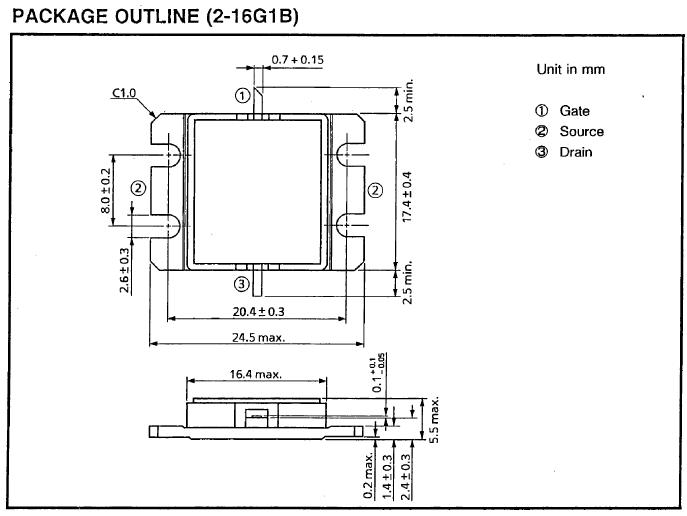

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM5964-16SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
