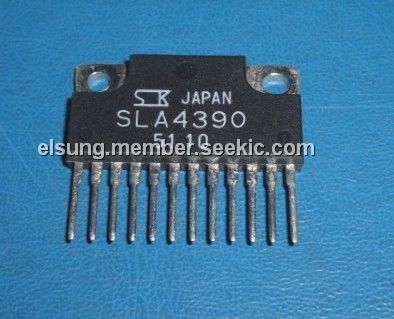

The SLA4390 is a Darlington H-bridge.
Parametrics
SLA4390 absolute maixmum ratings: (1)VCBO: 100V at NPN; -100v at PNP; (2)VCEO: 100Vat NPN; -100V at PNP; (3)VEBO: 6V at NPN; -6V at PNP; (4)IC: 5A at NPN; -5V at PNP; (5)ICP: 8A (PW≤1ms, Du≤50%) at NPN; –8A (PW≤1ms, Du≤50%) at PNP; (6)IB: 0.5A at NPN; -0.5A at PNP; (7)PT: 5W at Ta=25℃; 25W at Tc=25℃; (8)VISO: 1000Vrms (Between fin and lead pin, AC); (9)Tj: 150℃; (10)Tstg: –40 to +150℃; (11)θj-c: 5℃/W.
Features
SLA4390 electrical characteristics: (1)ICBO: 10μmA max when VCB=100V; –10 μA max when VCB=–100V; (2)IEBO: 10 mA max when VEB=6V;–10 mA max when VEB=–6V; (3)VCEO: 100 V min when IC=10mA; –100 V min when IC=–10mA; (4)hFE: 2000 min when VCE=4V, IC=3A; 2000 min when VCE=–4V, IC=–3A; (5)VCE(sat): 1.5 V max when IC=3A, IB=6mA; –1.5 V max when IC=–3A, IB=–6mA.
