Product Summary

The SGA-6486 is a high performance SiGe HBT MMIC Amplifier. The SGA-6486 increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only 2 DC-blocking capacitors, a bias resistor and an optional RF choke are required for operation. The applications of the SGA-6486 include PA Driver Amplifier, Cellular, PCS, GSM, UMTS, IF Amplifier and Wireless Data, Satellite.

Parametrics

SGA-6486 absolute maximum ratings: (1)Max. Device Current (ID): 150 mA; (2)Max. Device Voltage (VD): 7 V; (3)Max. RF Input Power: +18 dBm; (4)Max. Junction Temp. (TJ): +150℃; (5)Operating Temp. Range (TL): -40 to +85℃; (6)Max. Storage Temp: +150℃.

Features

SGA-6486 features: (1)Now available in Lead Free, RoHS Compliant, & Green Packaging; (2)High Gain: 16.4 dB at 1950 MHz; (3)Cascadable 50 Ohm; (4)Operates From Single Supply; (5)Low Thermal Resistance Package.

Diagrams

SGA-6486 Basic Application Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

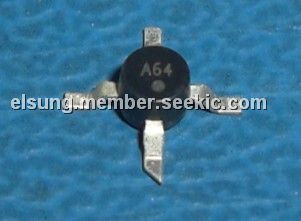

SGA-6486
SGA-6486


IC AMP HBT SIGE 4500MHZ SOT-86

Data Sheet

Negotiable
SGA-6486(Z)
SGA-6486(Z)

Other


Data Sheet

Negotiable
SGA-6486Z
SGA-6486Z


IC AMP HBT SIGE 4500MHZ SOT-86

Data Sheet

0-1: $1.92
1-10: $1.72
10-25: $1.55
25-100: $1.41
100-250: $1.27
250-500: $1.14
500-1000: $0.96
