Product Summary

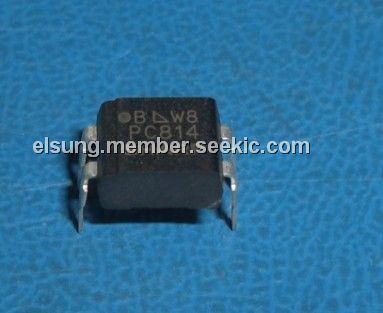

The PC814 is an AC Input Photocoupler. The applications of the device include Programmable controllers, Telephone sets, telephone exchangers, System appliances, Signal transmission between circuits of different potentials and impedances.
Parametrics
PC814 absolute maximum ratings: (1)Input, Forward current, IF: ± 50 mA; Peak forward current, I FM: ±1A; Power dissipation, P: 70 mW; (2)Output, Collector-emitter voltage, VCEO: 35 V; Emitter-collector voltage, VECO: 6V; Collector current, IC: 50 mA; Collector power dissipation, PC: 150 mW; (3)Total power dissipation, Ptot: 200 mW; (4)Isolation voltage, Viso: 5000Vrms; (5)Operating temperature, Topr: - 30 to + 100℃; (6)Storage temperature, Tstg: - 55 to + 125℃; (7)Soldering temperature, Tsol: 260℃.
Features
PC814 features: (1)AC input; (2)high isolation voltage between input and output; (3)compact dual-in-line package 1-channel type; (4)current transfer ratio CTR: min 20% at IF=±1mA, VCE=5V; (5)recognized by UL.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC81410NSZ |
|
PHOTOCOUPLER AC INPUT 4-DIP |
Data Sheet |
Negotiable |
|
||||
 |
PC81410NSZ0F |
Sharp Microelectronics |
Transistor Output Optocouplers Lo If/Hi CMR PC814XJ0000F |
Data Sheet |
Negotiable |
|
||||
|
PC81411NSZ |
|
PHOTOCOUPLER AC INPUT 4-DIP |
Data Sheet |
Negotiable |
|
||||
 |
PC8144TVT800 |
Freescale Semiconductor |
Microprocessors (MPU) PACSUN 800MHZ HI-TEMP |
Data Sheet |
Negotiable |
|
||||
|
PC814X |
|
PHOTOCOUPLER AC INPUT 4-DIP |
Data Sheet |
Negotiable |
|
||||
|
PC814X1 |
|
PHOTOCOUPLER AC INPUT 4-DIP |
Data Sheet |
Negotiable |
|
||||
|
PC814X1J000F |
Sharp Microelectronics |
Transistor Output Optocouplers 50-150% CTR rank PC814XJ0000F |
Data Sheet |
Negotiable |
|
||||
|
PC814XJ0000F |
Sharp Microelectronics |
Transistor Output Optocouplers Photocoupler AC Input |
Data Sheet |
Negotiable |
|
||||
