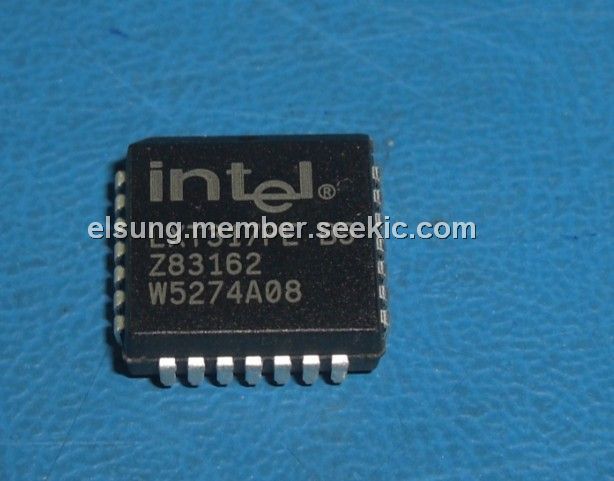

Product Summary

The LXT317PE is a fully integrated, long-haul transceiver for Digital European Cordless Telephone (DECT) base station interface applications at 1.152 Mbps. The LXT317PE operates over twisted-pair cable to a maximum of 43 dB (3.5 km at 0.6 mm, 40 nF/km cable) with no external components. The LXT317PE offers selectable HDB3 encoding/decoding, and unipolar or bipolar data I/O. The device also offers a variety of diagnostic features including loopbacks and Loss of Signal monitoring. Its advanced double-poly, double-metal CMOS process requires only a single 5-volt power supply. The applications of the LXT317PE include DECT base stations to switch/ PBX interface, NTU (interface to E1 Service), LAN bridge and Private network data pump.

Parametrics

LXT317PE absolute maximum ratings: (1)DC supply (referenced to GND), RV+, TV+: 6.0 V max; (2)Input voltage, any pin, VIN: RGND, -0.3 to RV+, +0.3 V; (3)Input current, any pin, IIN: -10 to 10 mA; (4)Ambient operating temperature, TA: -40 to 85℃; (5)Storage temperature, TSTG: -65 to 150℃.

Features

LXT317PE features: (1)Fully integrated transceiver comprising: on-chip equalizer; timing recovery/control; data processor; receiver; transmitter; digital control; (2)Fully restores the received signal after transmission via a cable with attenuation of 43 dB @ 576 kHz; (3)Selectable Unipolar or Bipolar data I/O; (4)Selectable HDB3 encoding/decoding; (5)Output short circuit current limit protection; (6)On-line idle mode for testing or for redundant systems; (7)Local and remote loopback functions; (8)Receive monitor with Loss of Signal (LOS) output; (9)High input jitter tolerance; (10)Constant through-chip delay; (11)Available in 28-pin DIP and PLCC; (12)-40℃ to +85℃ operating temperature.

Diagrams

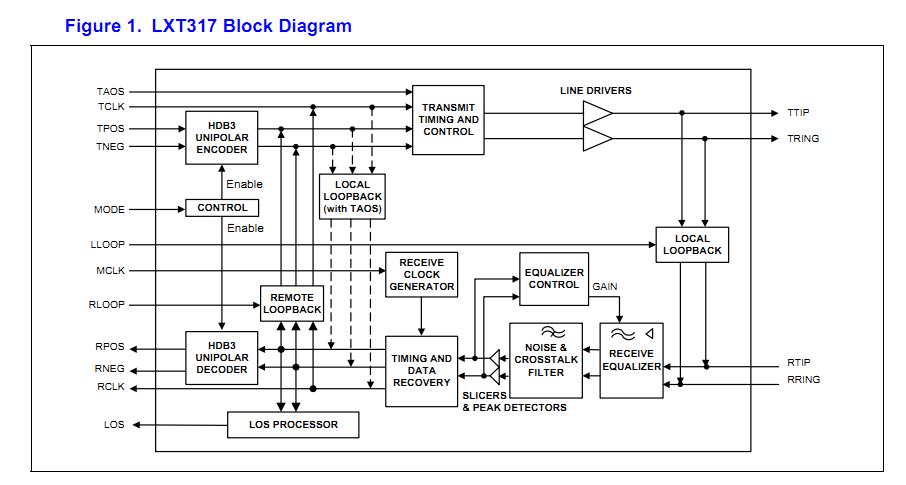

LXT317PE block diagram
