Product Summary

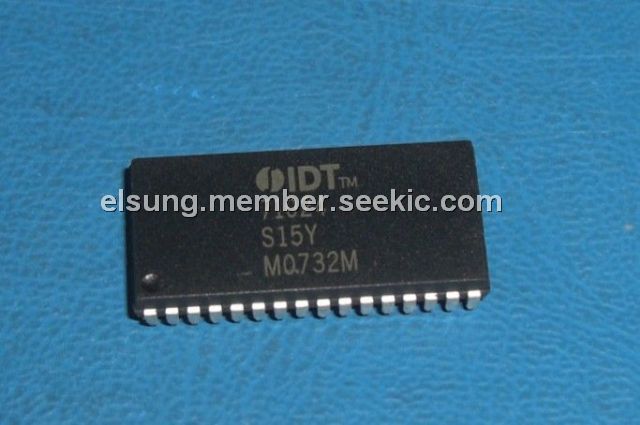

The IDT71024S15Y is a 1,048,576-bit high-speed static RAM organized as 128K x 8. It is fabricated using IDT high performance, high-reliability CMOS technology. This stateof-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs. The IDT71024S15Y has an output enable pin which operates as fast as 6ns, with address access times as fast as 12ns available. All bidirectional inputs and utputs of the IDT71024S15Y are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation. The IDT71024S15Y is packaged in 32-pin 300 mil Plastic SOJ, 32-pin 400 mil Plastic SOJ, and 32-pin 400 x 820 mil LCC packages.

Parametrics

IDT71024S15Y absolute maximum ratings: (1)VTERM(2) Terminal Voltage: –0.5 to +7.0 V; (2)Relative to GND; (3)TBIAS Temperature –55 to +125 ℃; (4)TSTG Storage Temperature: –55 to +125 –65 to +150 ℃; (5)PT Power Dissipation: 1.25 W; (6)IOUT DC Output Current: 50 mA.

Features

IDT71024S15Y features: (1)128K x 8 advanced high-speed CMOS static RAM; (2)Commercial (0 to 70℃), Industrial (-40 to 85℃) and; (3)Military (-55 to 125℃) temperature options; (4)Equal access and cycle time. Military: 15/17/20/25ns; Industrial: 15/20n; Commercial: 12/15/17/20ns; (5)Two Chip Selects plus one Output Enable pin; (6)Bidirectional inputs and outputs directly TTL-compatible; (7)Low power consumption via chip deselect; (8)Available in 300 and 400 mil Plastic SOJ, and LCC packages; (9)Military product compliant to MIL-STD-883, Class B.

Diagrams

IDT71024S15Y functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IDT71024S15Y
IDT71024S15Y


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

Negotiable
IDT71024S15Y8
IDT71024S15Y8


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

Negotiable
IDT71024S15YG
IDT71024S15YG


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

0-1: $1.97
1-25: $1.58
25-100: $1.44
100-250: $1.30
250-500: $1.17
500-1000: $0.99
1000-2500: $0.94
2500-5000: $0.90
5000-10000: $0.87
IDT71024S15YG8
IDT71024S15YG8


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

0-1: $2.11
1-25: $1.72
25-100: $1.55
100-250: $1.41
250-500: $1.23
IDT71024S15YGI
IDT71024S15YGI


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

0-1: $2.48
1-25: $2.00
25-100: $1.82
100-250: $1.64
250-500: $1.47
500-1000: $1.24
1000-2500: $1.18
2500-5000: $1.13
5000-10000: $1.10
IDT71024S15YGI8
IDT71024S15YGI8


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

0-1: $2.66
1-25: $2.17
25-100: $1.95
100-250: $1.77
250-500: $1.55
IDT71024S15YI
IDT71024S15YI


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

Negotiable
IDT71024S15YI8
IDT71024S15YI8


IC SRAM 1MBIT 15NS 32SOJ

Data Sheet

Negotiable
