Product Summary

The AD780ARZ is an ultrahigh precision bandgap reference voltage which provides a 2.5 V or 3.0 V output from inputs between 4.0 V and 36 V. Low initial error and temperature drift combined with low output noise and the ability to drive any value of capacitance make the AD780ARZ the ideal choice for enhancing the performance of high resolution ADCs and DACs and for any general purpose precision reference application. A unique low headroom design facilitates a 3.0 V output from a 5.0 V ± 10% input, providing a 20% boost to the dynamic range of an ADC, over performance with existing 2.5 V references. The AD780ARZ can be used to source or sink up to 10 mA and can be used in series or shunt mode, thus allowing positive or negative output voltages without external components. This makes it suitable for virtually any high performance reference application. Unlike some competing references, the AD780ARZ has no region of possible instability. The part is stable under all load conditions when a 1 μF bypass capacitor is used on the supply.

Parametrics

AD780ARZ absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Trim Pin to Ground: 36 V; (3)Temp Pin to Ground: 36 V; (4)Power Dissipation (25℃): 500 mW; (5)Storage Temperature: –65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Output Protection: Output safe for indefinite short to ground and momentary short to VIN; (8)ESD Classification: Class 1 (1000 V).

Features

AD780ARZ features: (1)Pin-Programmable 2.5 V or 3.0 V Output; (2)Ultralow Drift: 3 ppm/℃ max; (3)High Accuracy: 2.5 V or 3.0 V ± 1 mV max; (4)Low Noise: 100 nV/√Hz; (5)Noise Reduction Capability; (6)Low Quiescent Current: 1 mA max; (7)Output Trim Capability; (8)Plug-In Upgrade for Present References; (9)Temperature Output Pin; (10)Series or Shunt Mode Operation (±2.5 V, ±3.0 V).

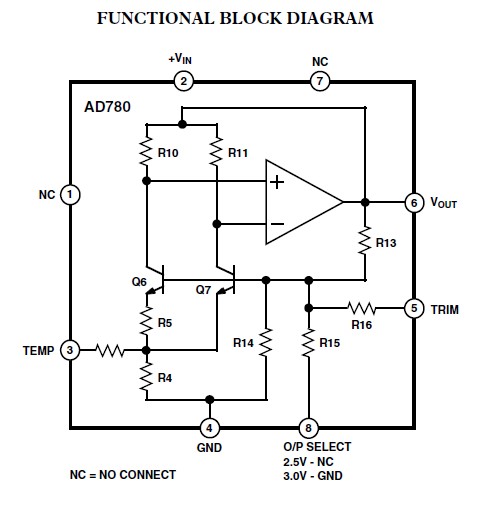

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

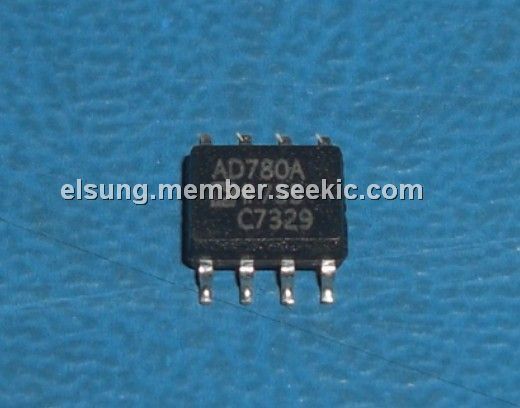

AD780ARZ
AD780ARZ


IC VREF SERIES SHUNT PREC 8-SOIC

Data Sheet

0-1: $5.51
1-10: $4.96
10-100: $4.08
100-250: $3.75
250-500: $3.42
500-1000: $2.97
1000-2500: $2.94
AD780ARZ-REEL7
AD780ARZ-REEL7


IC VREF SERIES SHUNT PREC 8-SOIC

Data Sheet

Negotiable
