Product Summary

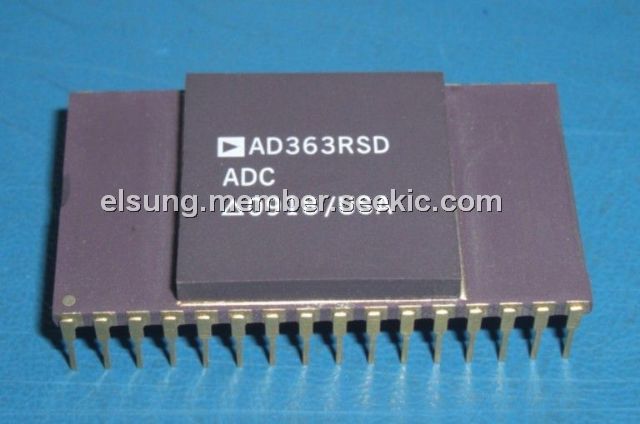

The AD363RSD is a complete 16-channel data acquisition sustem which condition and subsequently convert an analog voltage into digital form. The AD363RSD consists of two devices, an analog inout stage (AIS) and an analog-to-digital converter (ADC). The AIS includes a two 8-channle multiplexers, a channel address register, a unity gain instrumentation amplifer, and a sample-hold amplifer. The AD363RSD may be connected to the insrumentation amplifer in either an 8-connected differential or 16-channel signle ended configuration.
Parametrics
AD363RSD absolute maximum ratings: (1)+V, digital supply: +5.5V; (2)+V, analog supply: +16 V; (3)-V, analog supply: -16 V; (4)VIN, signal: ±V, analog supply; (5)VIN, digital: 0 to +V, digital supply; (6)AGND to DGND: ±1 V.
Features
AD363RSD features: (1)16-channel data acquisition input stage with: digitally controlled channel selection/mode control; (2)16 single-ended or 8 differential channels; (3)25 kHz throughout rate; (4)guaranteed no missing codes over temperature.

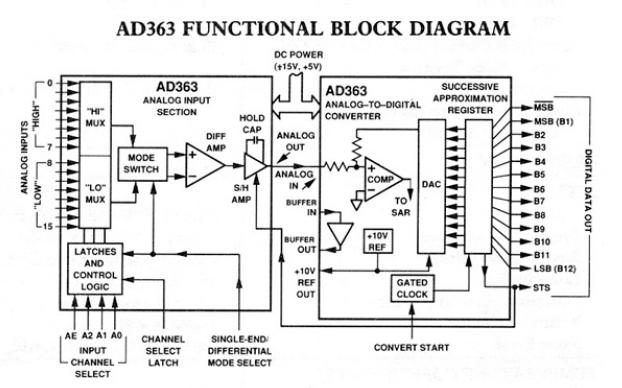

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD363RSDB |
|
IC ACQ DATA 16CH 12BIT 32-CDIP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
AD363RSDB |
|
IC ACQ DATA 16CH 12BIT 32-CDIP |
Data Sheet |
|
|
||||||
|
AD364RJD |
|
IC ACQ DATA 16CH 12BIT 32-CDIP |
Data Sheet |
|
|
||||||
 |
AD364RKD |
Analog Devices Inc |
IC ACQ DATA 16CH 12BIT 32-CDIP |
Data Sheet |
Negotiable |
|
||||||
|
AD364RSD |
Analog Devices Inc |
IC ACQ DATA 16CH 12BIT 32-CDIP |
Data Sheet |
Negotiable |
|
||||||
|
AD364RTD |
|
IC ACQ DATA 16CH 12BIT 32-CDIP |
Data Sheet |
|
|
||||||
